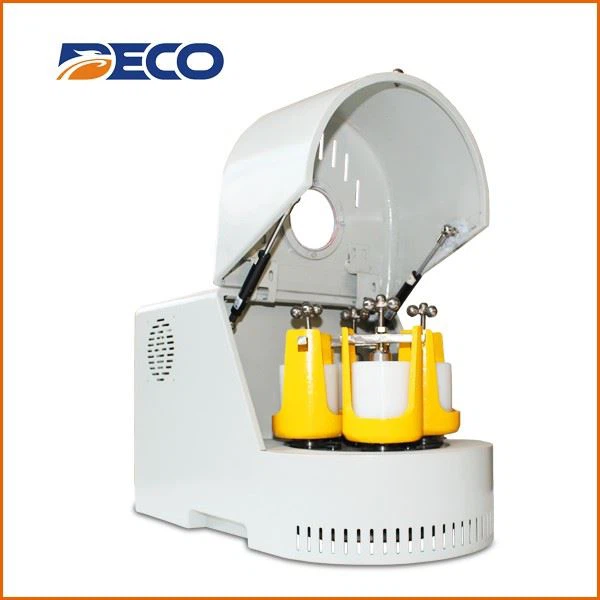

4 Chaw Nres Planetary Pob Zeb Rau Lab
Lub pob zeb planetary no yog siv rau kev sib tsoo cov qauv kuaj, dav siv hauv tshuab, tshuaj, tshuaj pleev ib ce, lub zog tshiab, kev sim thiab lwm yam haujlwm.
Hauj lwm lawm
4 chaw nres tsheb planetary pob zeb rau lab
txoj cai ua haujlwm:
Lub hauv paus ntsiab lus ntawm kev ua haujlwm yog siv cov khoom siv abrasive thiab cov khoom siv kuaj kom yob hauv lub tank sib tsoo ntawm kev kub ceev los tsim muaj zog shearing, cuam tshuam thiab dov ntawm cov ntaub ntawv, thiaj li ua tiav lub hom phiaj ntawm crushing, sib tsoo, dispersing thiab emulsifying cov ntaub ntawv.
Lub planetary pob zeb yog nruab nrog plaub lub pob milling tso tsheb hlau luam ntawm tib lub turntable. Thaum lub turntable rotates, lub pob milling tank tig ib ncig ntawm nws tus kheej axis thiab ua rau lub hnub qub zoo li cov lus tsa suab. Cov pob zeb sib tsoo hauv lub tank sib tsoo nrog ib leeg hauv kev ua haujlwm siab ceev, sib tsoo thiab sib xyaw ua qauv.
daim ntawv thov:
Planetary pob zeb yog tsim los rau kev sib tsoo, dispersing hlau, nonmetallic, organic, suav tshuaj ntsuab thiab lwm yam hmoov, tshwj xeeb tshaj yog haum rau kev soj ntsuam kuaj thiab siv.
Cov khoom tuaj yeem ua rau hauv av thiab sib tov los ntawm txoj kev qhuav thiab ntub. Qhov tsawg kawg nkaus particle loj ntawm cov khoom tuaj yeem yog 0.1 μ M. Nyob rau tib lub sijhawm, vim nws qhov zoo ntawm cov khoom me me, kev siv hluav taws xob tsawg thiab tus nqi qis, nws yog cov khoom siv rau crushing txheej txheem, cov ntaub ntawv tshiab. thiab txheej kev tshawb fawb hauv tsev kawm qib siab, tshawb fawb lub koom haum thiab cov tuam txhab.
Technical Data
|
Txoj Cai Ua Haujlwm |
kev cuam tshuam thiab kev sib txhuam quab yuam |
|
Yam khoom No. |
DECO-PBM-V-0.4L |
|
Compatible Sib Tsoo Jars |
100ml * 4 |
|
Max pub muaj peev xwm |
1/3 muaj peev xwm ntawm lub thawv sib tsoo |
|
Hom kev ua haujlwm |
2 lossis 4 lub khob sib tsoo ua haujlwm ib txhij |
|
Pub Granularity * |
Cov ntaub ntawv av <10mm, lwm yam ntaub ntawv <3mm |
|
Tshem tawm Granularity |
nqes mus rau 0.1μm |
|
Hom qauv |
nyuaj, nruab nrab-nyuaj, mos, fibrous, nkig, moist |
|
Rotational ceev ntawm sib tsoo hub |
1100 rpm |
|
Rotational Speed Ratio |
1 : -2 |
|
Tsav hom |
gear drive thiab siv tsav tsheb |
|
Tswj ceev |
stepless ceev tswj |
|
Hluav taws xob Paub meej |
22 0/110VAC, 50/60Hz, 0.25KW |
|
Max nruam sib tsoo lub sij hawm |
72 teev (tag nrho-load) |
|
Qhov hnyav (Net / Gross) |
30/40 KG |
|
Qhov Loj (L * W * H) |
502 * 300 * 298 hli |
|
Loj ntawm Planetary Disk |
Dia190mm * T6mm |
