40L Nanoparticle Npaj Milling

40L nanoparticle planetary ball milling Taw qhia: Planetary Ball Mills yog siv txhua qhov chaw tshaj plaws ntawm fineness yog yuav tsum tau ua. Ntxiv rau qhov zoo sib xyaw thiab kev txo qis qis, cov mills no kuj ua tau raws tag nrho cov kev cai rau colloidal sib tsoo thiab muab lub zog ...

Xa kev nug Tsham tam sim no

Hauj lwm lawm

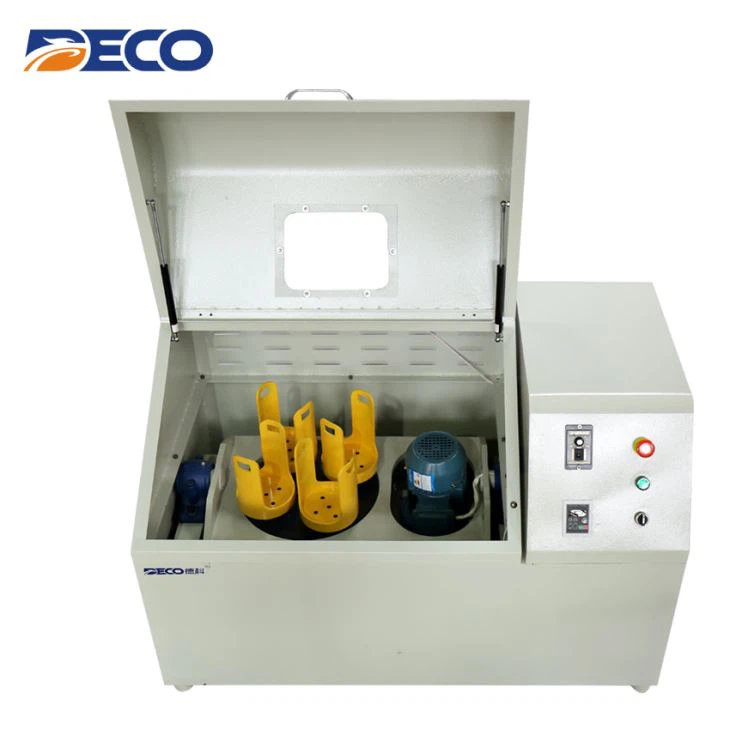

40L nanoparticle planetary pob milling
Taw qhia:
Planetary Ball Mills yog siv txhua qhov chaw tshaj plaws ntawm fineness yog yuav tsum tau ua. Ntxiv rau qhov zoo sib xyaw thiab kev txo qis qis, cov mills no kuj ua tau raws li tag nrho cov kev cai rau kev sib tsoo colloidal thiab muab lub zog tawm tswv yim tsim nyog rau kev kho txhua yam. Lub siab centrifugal zog ntawm ib lub pob ntawm cov pob zeb hauv pob zeb ua rau lub cev muaj zog heev pulverization thiab yog li no lub sij hawm luv luv.

Daim ntawv thov ntawm planetary pob zeb:
Nyob ntawm seb qhov yuav tsum tau ua li cas, qhov sib tsoo tuaj yeem ua tau qhuav, nyob rau hauv kev ncua lossis hauv qhov roj. Ntxiv nrog rau comminution, koj kuj tseem siv lub mills rau tov thiab homogenising ntawm emulsions thiab pastes los yog rau mechanical alloying thiab activation nyob rau hauv cov ntaub ntawv tshawb fawb.

Cov Ntaub Ntawv Kev
Specification

Lub npe	40L nano particle planetary pob milling
Qauv	DECO-PBM-AD-40L
Peev Xwm	10 L * 4PCS milling tso tsheb hlau luam
Max pub zog	2/3 muaj peev xwm ntawm lub tank milling
Kev sib tsoo txoj kev	Sib txhuam qhuav / ntub sib tsoo / nqus sib tsoo / sib sib zog nqus kub sib txuas rau ntawm yeem
Chaw thau khoom thiab tawm khoom tawm	Intermittent hom
Hom kis:	Iav tsav tsheb thiab siv tsheb
Tswj lub cev	Kev hloov ua kom lub cev tsis sib xws, tswj kev tiv thaiv lub cev
Qhov siab	380 V-50Hz
Rated zog	5.5 KW
Kev Tiv Thaiv / Kev Kiv puag ncig	390 rpm / 195rpm
Tshaj tawm kev loj me me (hli)	Cov khoom siv av 10 hli, lwm cov ntaub ntawv3 hli
Tshaj tawm qhov me me (μm):	Feem ntau cov khoom 2-5μm, rau qee cov khoom zoo li av nplaum / graphene <>
Pob zeb khoom	Agate, zirconia, alumina tej hub, nyuaj alloy, stainless hlau, nylon, PTFE, PU
Pob qhov ntev (hli)	3,5,8,10,15,20
Ntsuas phom:	1300KG

Nta:
1. Lub cav ua rau 360 degree planetary zog tsis muaj ib qho tuag lawm, yog li cov av hmoov av me me thiab ntau dua
2. Nws daws cov teeb meem ntawm cov ntaub ntawv tog thiab ua rau lub lauj kaub.
3. Daim iav kis tau zoo kom qhov sib npaug thiab kev rov ua dua ntawm kev sim.
4. Koj tuaj yeem tau plaub hom hmoov sib txawv ntawm ib zaug.
5. Cov kev txwv tswj cov kev tswj thiab kev tswj kav.

Zoo
Ntau hom hmoov yuav ua tau hauv av los ntawm peb lub pob zeb npog zeb nrog cov zeb zeb sib txawv thiab npas, xws li hmoov hmoov hmoov, fluorescent hmoov, iav hmoov, xim hmoov thiab lwm yam.
